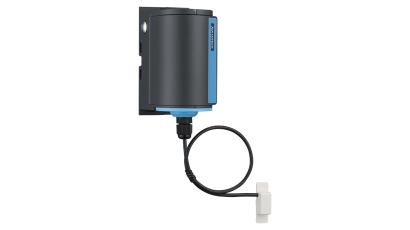

The Advantech EVA-2510-NA is a LoRaWAN wireless water-leak detection sensor for cooling systems, water treatment plants, data centers, and commercial buildings. Its 1-meter sensing line detects water contact along its full length and reports over LoRaWAN, so leaks are caught before they cause severe damage.

Key specifications

• LoRaWAN wireless connectivity, US 902–928 MHz (NA variant); EU/AU/AS variants available
• Water-sensing line: 3.5 mm diameter, 1000 mm length, VW-1 flame rating
• Up to 5 years battery life (2x AA 3.6 V Li-SOCl2, 15-min reporting interval)
• Wall, magnetic, and pole mounting options; 112 x 51 x 71.5 mm housing
• Configuration via LoRaWAN downlink commands; power/TX/reset LED indicators
• Operating range -20°C to 55°C, 0–90% RH; IP30
• Certifications: CE (RED), FCC, TELEC, RCM, NCC

Pairs with any LoRaWAN network server or Advantech WISE-6610 gateway for facility-wide leak monitoring.
