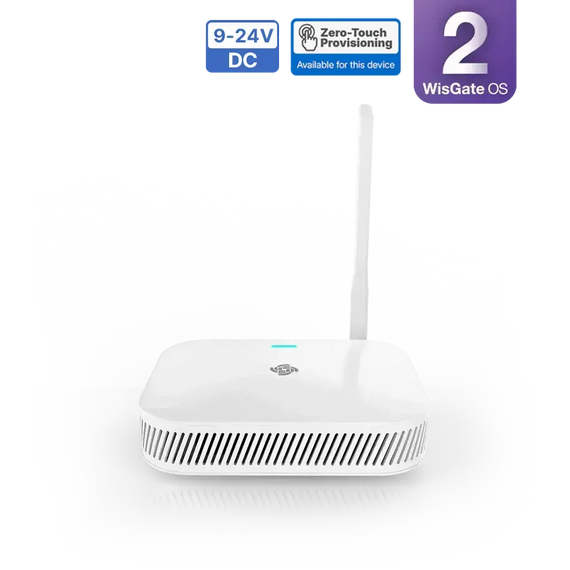

The RAK7268 WisGate Edge Lite 2 is an 8-channel indoor LoRaWAN gateway for small and medium industrial deployments. Running WisGateOS 2 on OpenWrt, it offers Ethernet, Wi-Fi, and optional cellular backhaul with a built-in LoRaWAN network server option, all in a compact wall- or DIN-rail-mountable enclosure.

Key specifications

• 8 LoRa channels via SX1302 mini-PCIe card; -139 dBm RX sensitivity, 27 dBm TX power
• MediaTek MT7628 processor with 128 MB RAM; WisGateOS 2 with web UI and SSH
• Backhaul: 10/100 Mbps Ethernet, 2.4 GHz Wi-Fi, optional LTE Cat 4
• Power via 12 V DC adapter or IEEE 802.3af PoE (36–57 V)
• Built-in network server, Basics Station and packet-forwarder modes, MQTT bridging
• IP30 enclosure, 166 × 127 × 36 mm, -10 to 55°C operating range

A flexible indoor base station for private LoRaWAN networks, compatible with standard network servers and RAK's WisDM remote management.
