A LoRaWAN-5G gateway for under $100. This compact, fanless unit combines a LoRaWAN concentrator with an LTE/5G network core. It sits between the small cell radios and the internet, and connects up to three CBRS small cells through its dedicated Ethernet ports. It is sold on its own, separately from the cells.

Volume pricing

The volume price applies automatically in the cart and counts together with other items in the $50 to $149 range.

Processor and storage

• CPU: Intel Celeron J1900, quad core, 2.42 GHz
• RAM: 4 GB DDR3L SO-DIMM
• Storage: 64 GB SSD

LoRaWAN

• Concentrator: RAK5146, 915 MHz (US915)
• Antenna: 1.2 dBi, RP-SMA connector

Cellular

• LTE/5G network core for CBRS small cells
• Three small-cell ports (eNB1, eNB2, eNB3) for up to three CBRS small cells

Interfaces

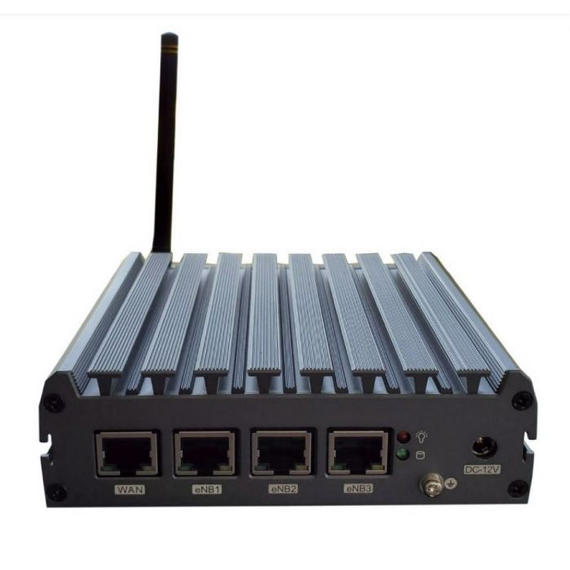

• Ethernet: 4 x RJ45 Gigabit (1 WAN, 3 eNB)

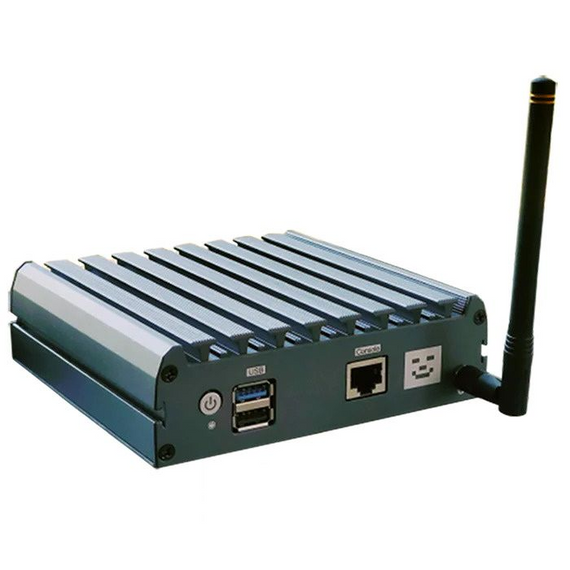

• USB: 2 x USB 3.2 Gen 1
• Console: RS-232 on RJ45

Power and enclosure

• Power: 12 V DC, adapter provided, 20 W max
• Chassis: fanless aluminum, grey
• Dimensions: 45 x 135 x 130 mm (H x W x D)
• Weight: 1.5 lb
• Operating temperature: -10 °C to +50 °C
• Mounting: wall or ceiling

Model FFG-HL-4-64. Specifications as published by the manufacturer and its distributors. Surplus stock, sold as-is.
