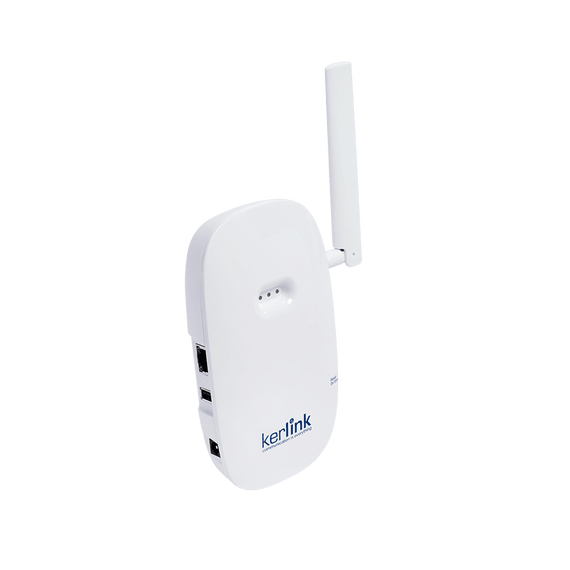

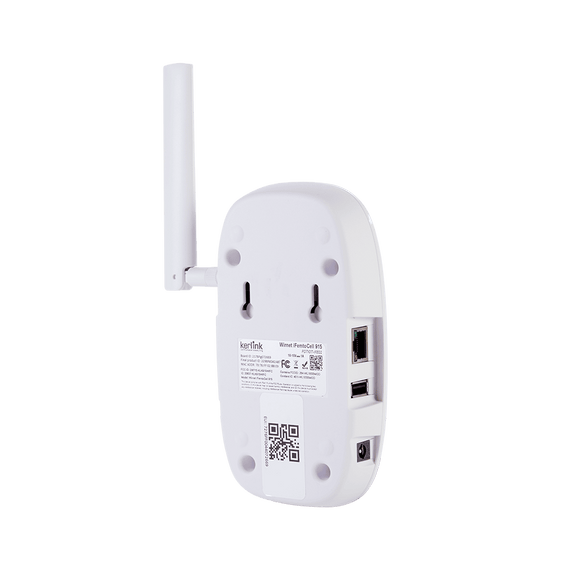

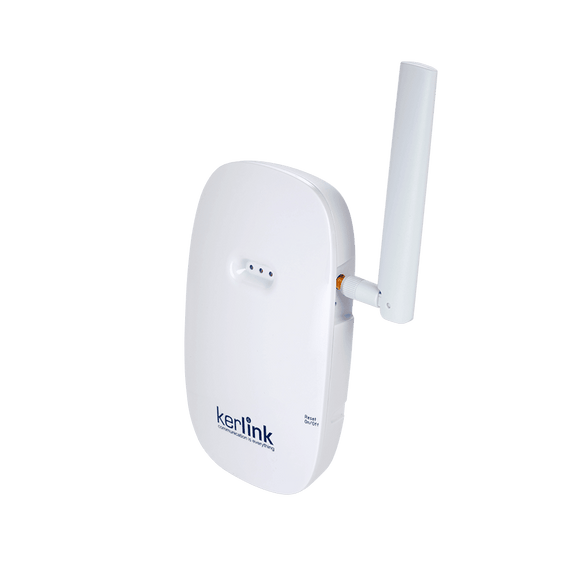

The Kerlink Wirnet iFemtoCell is an indoor LoRaWAN gateway for US915 networks, suited to buildings and pilots.

Radio

• 8 RX channels (125 kHz, multi spreading factor), 1 RX channel (250 kHz or 500 kHz, mono spreading factor), 1 FSK RX channel and 1 TX channel
• RX sensitivity: -141 dBm (SF12)
• TX power: configurable from 5 dBm to 27 dBm
• Built-in high-rejection filters
• Listen Before Talk sniffer and spectrum analysis
• Semtech Reference Design v1.5 components

Connectivity and power

• Backhaul: Ethernet (RJ45) and Wi-Fi with integrated antenna
• Power: 12 VDC through a 2.5 mm / 5.5 mm jack

Security and management

• SecureBoot with signed firmware and SecureStorage for keys and certificates
• Secured backhaul links (OpenVPN / IPsec)
• Watchdog reboot and recovery to the previous or factory configuration
• Compatible with Kerlink Wanesy Management Center and Wanesy Small Private Network

Hardware

• CPU: ARM Cortex A9, 256 MB RAM, 8 GB eMMC
• Casing: IP30, for indoor use
• Operating range: -20 °C to +55 °C, 5% to 95% humidity
• Size: 160 x 90 x 35 mm
• Weight: 163 g (gateway), 372 g packed

Specifications as published by Kerlink.
