Dragino LWL01 LoRaWAN water leak sensor
Dragino · Sensors

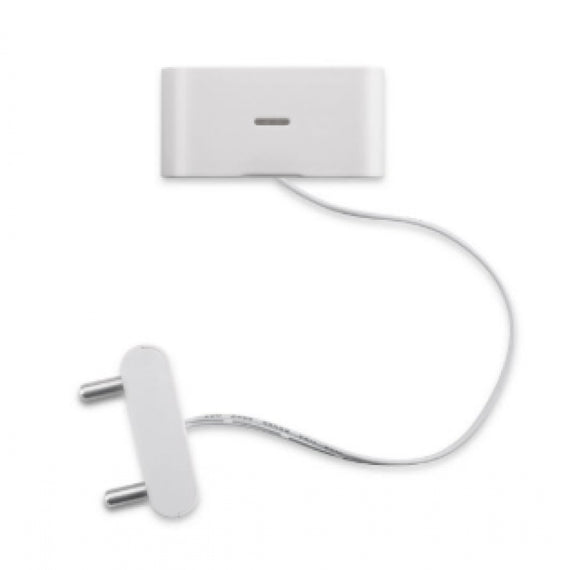

Dragino LWL01 Leak

SKU DRA-LWL01-915 Available on order
$65.00 per unit, wholesale price
Request a quote for a larger order

Specifications

The Dragino LWL01 is an ultra-compact LoRaWAN water leak sensor for protecting homes, server rooms, and facilities from water damage. At just 64 × 30 × 14 mm, it detects water between its sensing contacts and instantly uplinks a leak event, while also counting leak events and measuring leak duration.

Key specs

  • Water leak detection via sensing contacts, uplink on event plus daily periodic reports
  • CR2032 coin battery: up to 12,000 uplinks (good coverage) for about 2 years of use
  • LoRaWAN v1.0.3 Class A, SX1262 LoRa core
  • Counts leak events and calculates last leak duration
  • Remote configuration via LoRaWAN downlink; AT commands for parameter changes
  • Preloaded with unique OTAA keys for fast network registration

This US915 variant works with any standard LoRaWAN gateway and network server, including The Things Network and ChirpStack.
