Seeed WM1302 LoRaWAN gateway module, SPI, US915
Seeed Studio · Components · US915

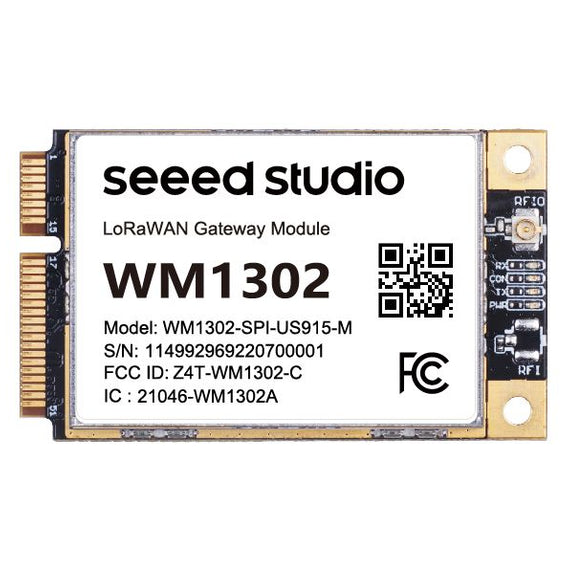

Seeed WM1302 LoRaWAN Gateway Module (SPI, US915)

SKU CIR-000004-915 9,829 in stock
$32.00 per unit, wholesale priceAs low as $19.00 per unit at 500+ units
Volume pricing
QuantityUnit price
1 to 24 units $32.00
25 to 99 units $27.50
100 to 499 units $23.00
500 units and above $19.00
The volume price applies automatically in the cart.
Request a quote for a larger order

Specifications

The Seeed Studio WM1302 US915 is a LoRaWAN gateway module built on the Semtech SX1302 baseband chip. It uses a standard mini-PCIe form factor (52-pin edge connector), so it drops into custom LPWAN gateways for IoT and M2M deployments.

Key specs

  • Chipset: Semtech SX1302 baseband with dual SX1250 TX/RX radio front ends
  • Band: US915 (902–928 MHz, North America)
  • Interface: SPI (this listing), the common choice for single-board computers such as the Raspberry Pi. A USB variant also exists.
  • Sensitivity: down to -139 dBm at SF12
  • TX power: up to 25–26 dBm at 3.3 V
  • Range: up to 15 km rural and 5 km urban under optimal conditions
  • Thermal: low power draw and low operating temperature, so no heavy heat sinking is needed

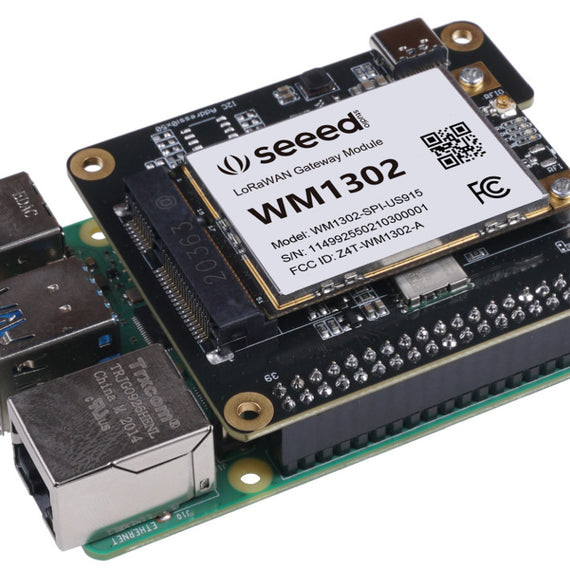

In the box: WM1302 module only. The Pi HAT and Raspberry Pi shown in one photo are not included.

Wholesale pricing. Contact us for volume quotes.
