SplashDrone 3+
The world’s first waterproof quadcopter
Watch video
Filming
Fishing
Boating
Rescue

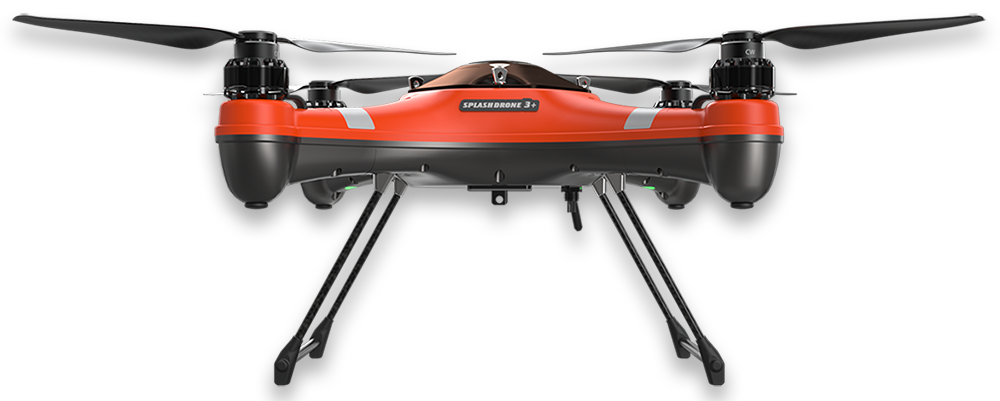

SplashDrone3+ Base Platform
The Base Platform comes with no cameras. After being equipped with different camera or payload release systems,
your SplashDrone3+ can be used for filming, fishing, boating or rescue. No limit, no worries.
your SplashDrone3+ can be used for filming, fishing, boating or rescue. No limit, no worries.
Extended flight time up to 23 mins
5200mAh LiHV battery with low battery warning
Enhanced full-body IP67 waterproof
GPS module & lost drone location beacon
Up to 4k videos & 16MP photos

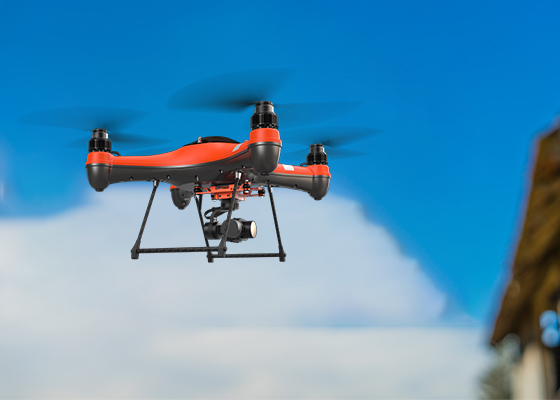

Tough & Waterproof
The whole fuselage of SplashDrone3+ is made from durable reinforced ABS material (Acrylonitrile Butadiene Styrene) and ensures a perfect waterproof seal. Fly the drone whenever you want, and whereever you need.

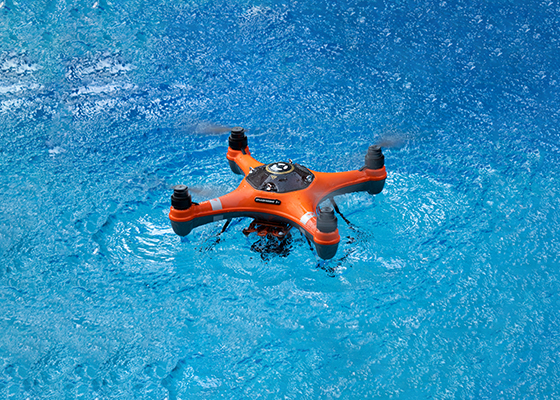

Floating design

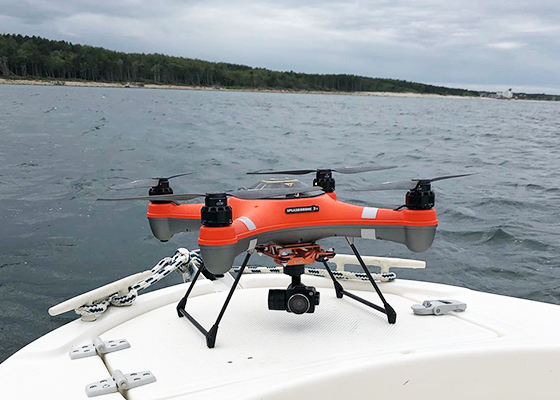

Corrosion-resistant

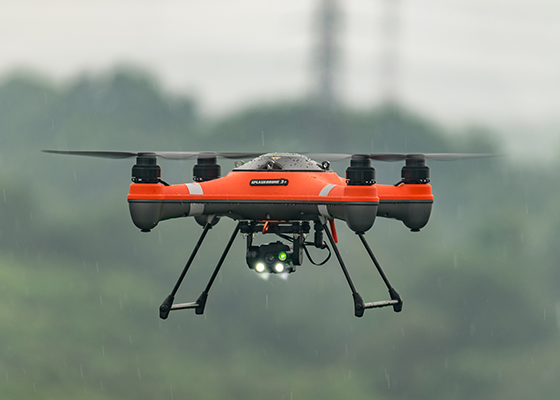

All-weather flying (rain & snow)
Quick installation & strong power system
SplashDrone3+ is easy to use and gives you various options when flying, filming, fishing, boating and rescue. All supported by the accurate sensor and powerful propulsion system. Your superman in the air and on the water.

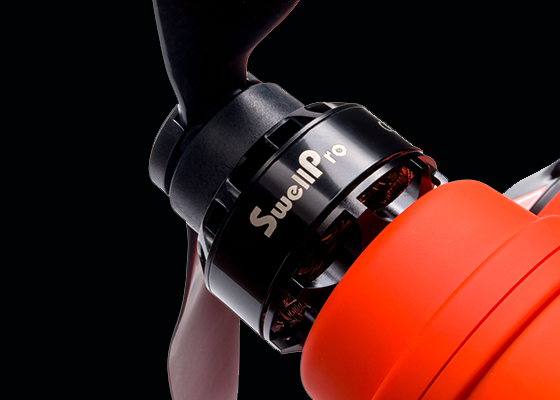

Powerful propulsion system
Up to 65km/h high speed

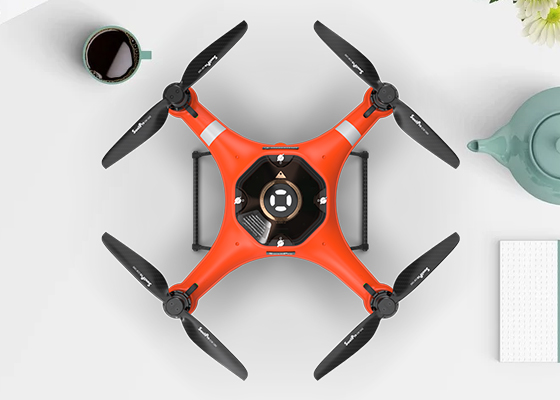

Quick-release 2-blades propellers

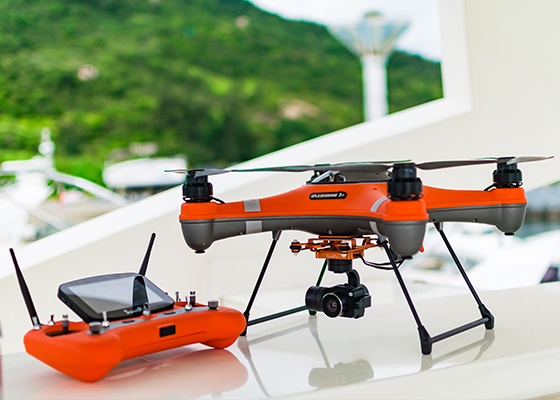

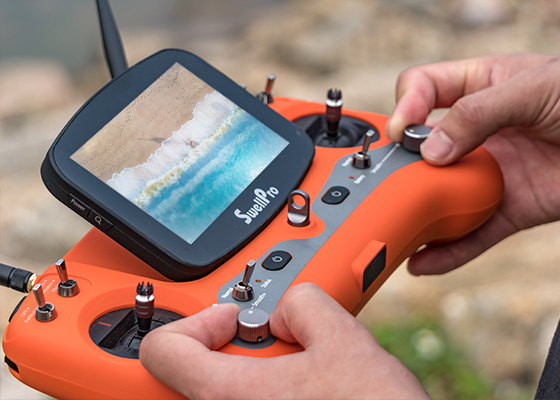

All-in-One remote controller
Captured with a 5 inch FPV monitor provides the remote controller a bright and clear live view (800 X 480 pixels) and maximizes the ease of use. GPS, ATTI and smart cruise flight mode, all-in-one.
All-in-One remote controller
Flexible joystick/knob control
Flexible joystick/knob controlFlexible joystick/knob control Flexible joystick/knob controlFlexible joystick/knob control Flexible joystick/knob controlFlexible joystick/knob controlVarious of flight modes
Flexible App control, free your hands with easy touch

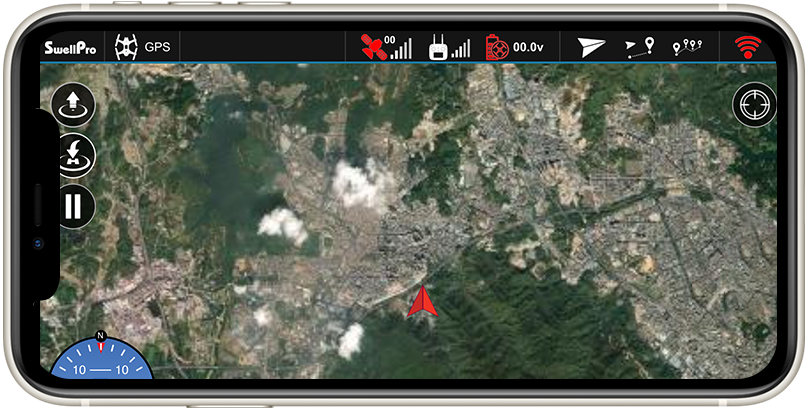

With the extra Bluetooth ground station, the SplashDrone3+ can be taken control easily by mobile phones or GPS-enabled tablets. The SwellPro Fly App provides even smarter flight modes, which make your flight easier and cooler.
Follow Me
Mission Planning
Circling Flight
Tap to Fly
PowerFlip - Self-righting on command
Upside down? No worries!
Fly Safely
SplashDrone 3+ includes multiple layers of protection to keep your aircraft safe and help ensure your drone comes home safely.
Return Home
If the controller signal is lost, the SplashDrone 3+ returns to the starting point and lands gently.You can also tap Return-Home on the app or flick the Return-Home switch on the remote controller to retrieve the drone.

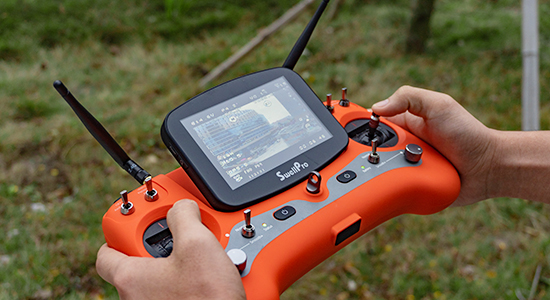

Low Battery Alerts
Three low-level battery warnings protect you during flight.If the battery voltage reaches a low level, the remote controller will display a clearflashing notice for the pilot.If the battery level becomes critical, the drone will auto-land.

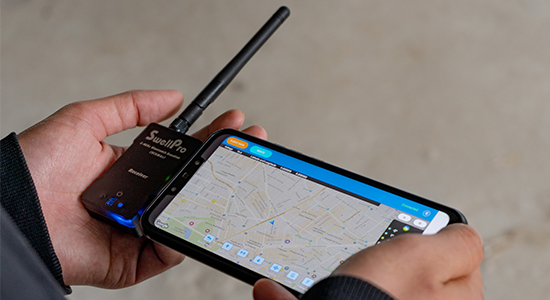

Lost Drone Location Beacon
If you inadvertently lose or crash your drone out of sight,you will instantly have the drone's location pinpointed on the APP’s map, even with low batteries.(GroundStation module required).
Anti-shake images & follow me mode

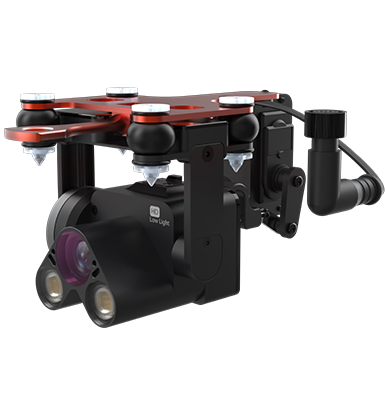

The filming cameras for SplashDrone3+ come with gimbal
and can shoot captures with free shaking, even for the moving objects.
Adding extra Bluetooth Datalink into the drone,
it could also follow you automatic under control by SD3+’s Fly App.
and can shoot captures with free shaking, even for the moving objects.
Adding extra Bluetooth Datalink into the drone,
it could also follow you automatic under control by SD3+’s Fly App.
High quality captures - See the world up and down

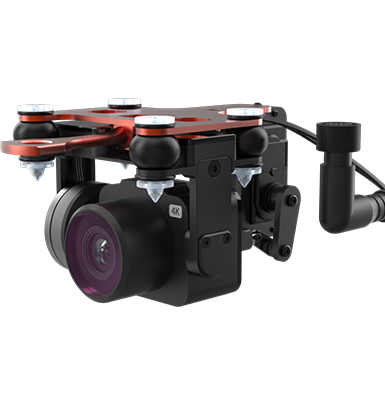

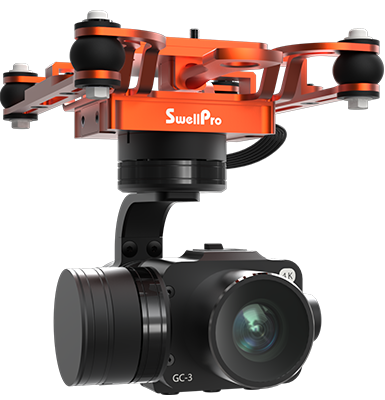

Attached with SwellPro 4k gimbal camera, SplashDrone3+ is a perfect filming drone for taking ultra-clear footages,
on the water or in the rain, against a storm or dance with the snow.
Up to 16MP photos and 4k video.
on the water or in the rain, against a storm or dance with the snow.
Up to 16MP photos and 4k video.
SplashDrone3+
SPECS
Specification
Waterproof Level:
Surface Buoyant (short periods up to 600mm deep)
Drone Weight:
1447g (without battery)
Axis Diameter:
450mm
Max Ascend Speed:
4m/s
Max Descend Speed:
3m/s
Max Flight Speed:
20m/s (ATTI mode)
Max Flight Altitude:
200m (GPS) / 1.3km (ATTI)
Max Flying Wind Speeds:
a. Typical Maximum = 8m/s (11-16knots)(F4) b. Typical Gusts = 12m/s (22-27Knots) (F6) Peak
Hovering Precision:
±0.5meter
Max Flight Time (per charge):
20 ~ 23 minutes
Max Flight Range:
1.6km
Max Flight Weight:
~3KG
Max Payload Capacity:
1KG
Positioning Satellite:
Dual Satellites - GPS/GLONSS
Flight Controller:
Swellpro S3
Motor:
#3510/620KV
ESC:
40A
Propellers:
#1242 carbon fiber quick-fit propellers
Working Temperature:
-10°C ~ 40°C
Battery Types:
4S 15.2V 5200mAh LiHV battery
Battery Weights:
561g (5200mAh LiHV)
Charging Time:
90 minutes
Remote Control
Weight:
660g
Range:
450mm
Receiver Sensitivity(1%PER):
4m/s
Frequency:
5645 ~ 5965HMZ
No. of Channels:
40CH
Range:
1.6km Max
Power:
200~600mW
Screen Size:
5 inch
Screen Resolution:
800X480 Pixels
Screen Brightness:
500 cd/m2
SplashDrone3+
VIDEO
Splashdrone 3+ Waterproof Drone Quick Start Tutorial
2020-04-27
Splashdrone 3 Plus
SplashDrone 3+ Tutorial - 6 Sided Compass Calibration
2019-12-16
Splashdrone 3 Plus
SplashDrone 3+ Tutorial - Flight Modes
2019-12-16
Splashdrone 3 Plus
SplashDrone 3+ Tutorial - 2 Sided Compass Calibration
2019-12-16
Splashdrone 3 Plus
SplashDrone 3+ Tutorial - Accelerometer Calibration
2019-12-16
Splashdrone 3 Plus
SplashDrone 3+ Tutorial - Precautions
2019-12-16
Splashdrone 3 Plus
SplashDrone3+
download
Document manual
SplashDrone3+
FAQ
Q: Does the base platform comes with cameras or payload release system for fishing?
A: No. The base platform is only the aircraft. Accessories must be added or you could choose the assembled kit.
Q: How much weight can the drone hold?

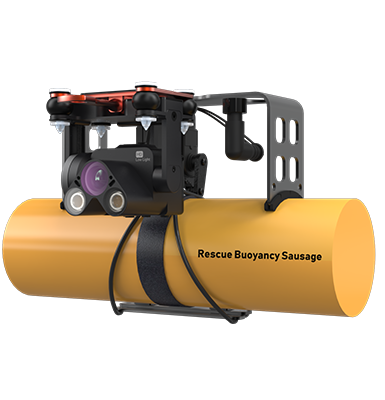

A: Payload release system for fishing can hold up to 1kg and 1.2kg for rescue kit.
Q: Can the drone also fly in the rain?
A: Yes, the whole aircraft with the its accessories are all waterproof. Should be washed with cleaned water after exposed to salt waters.
Q: What’s the difference between the four kits?
A: The kits for filming, fishing, boating and rescue are equipped with different cameras. Check “In the box” section to see what’s included.
